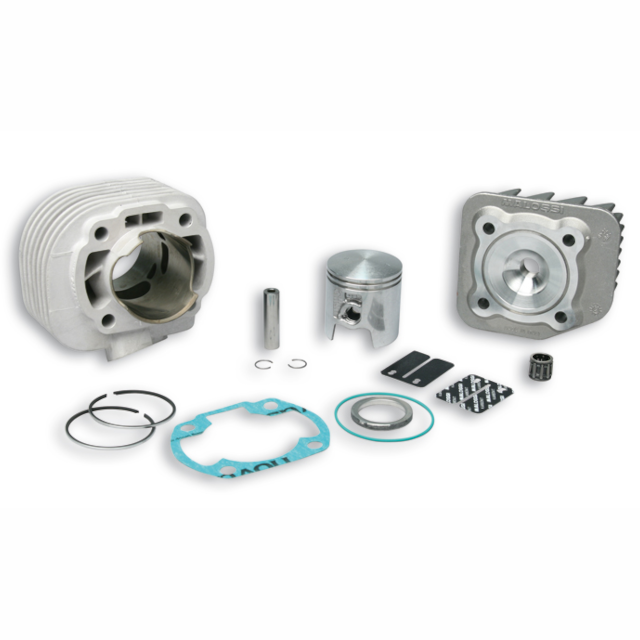

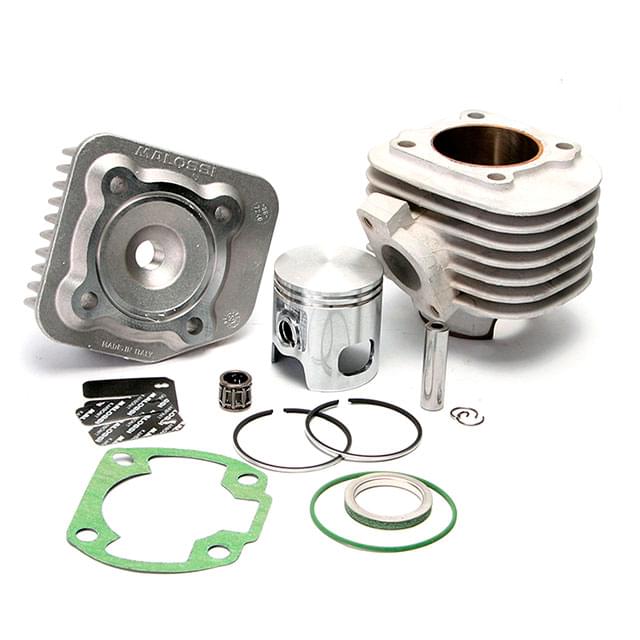

Malossi MHR Replica 70cc AC cylinder for air-cooled Minarelli Horizontal engines.
With the MHR Replica cylinder (Malossi Hyper Racing) Malossi offers a very powerful racing cylinder, which is only surpassed by the MHR Team II.
The cylinder has a bore of 47,6mm, and comes equipped with six transfers and an extra large T-Port. We recommend to face the crankcase to the cylinder channels to achieve maximum power. The MHR Replica 70cc can reach up to 14.500 RPM.
We recommend a Racing Stage6 PRO or Voca exhaust as well as a 21 to 24mm carburettor will give good results
Features:
- Chrome plated rectangular two-segment piston and a compression ratio of 13.8:1
- Torque of 7,5 N.m. (0,75 Kgm) at 8000 r.p.m
- Power output of 6.6 Kw (9 HP) at 8500 rpm.
It is recommended to fit an Iridium spark plug
The kit includes:
Additional Information
| SKU: | 318437 |
| Stroke: | 2T |
| Refrigeration: | AC |
| Material: | Aluminium |
| Displacement: | 70cc |
| Cylinder diameter: | 47,6mm |
| Piston Ring: | 2 |
| Includes cylinder head?: | Yes |
| Cylinder Head: | Normal (1 piece) |
| Original pin?: | Yes |
| Pin Measure: | 10mm |
| Original Course?: | Yes |
| Course: | 39,2mm |
| Original Connecting Rod?: | Yes |
| Connecting Rod: | 80mm |
| Thread: | Corta |
Product Questions
You must be logged in to ask questions.
No questions yet. Be the first to ask the question!
Good for
| Make | Model |
|---|---|
| Make | Model |
| Adly | Thunderbike 50 AC |
| Aprilia | Scarabeo 50c.c. AC (antes del '98) |
| Aprilia | Gulliver 50c.c. AC |
| Aprilia | Scarabeo 50c.c. AC (a partir del '98) |
| Aprilia | SR 50c.c. AC (desde 94 hasta 97) - Minarelli horiz |
| Aprilia | Rally 50c.c. AC |
| Aprilia | Sonic 50c.c. AC |
| Aprilia | SR 50 WWW - Minarelli horizontal |
| Benelli | Naked 50c.c. AC (desde 2003) - Motor Minarelli |
| Benelli | 491 AC (antes 2002) - Minarelli horiz. |
| Benelli | K2 50c.c. AC (aire) - Minarelli horiz. |
| Benelli | Pepe 50c.c. AC (antes del 2003) - Minarelli horiz. |
| Beta | ARK 50c.c. AC (Minarelli horizontal) |
| Beta | Tempo 50c.c. AC |
| Beta | Chrono 50c.c. AC - Minarelli horiz. |
| Beta | Quadra 50c.c. AC - Minarelli horizontal |
| CPI | Popcorn 50c.c. AC (< 2003/Bulón 10mm) - Min. horiz |
| CPI | Oliver 50c.c. AC (< 2003 / Bulón 10mm) - Min.horiz |
| CPI | Hussar 50c.c. AC (antes del 03) - Minarelli horiz. |
| Kreidler | Flory 50c.c. AC |
| Kreidler | Florett 50c.c. AC |
| Malaguti | F15 Firefox 50c.c. AC (aire) a partir del 2004) |
| Malaguti | F12 Phantom 50cc AC (a partir del 2004) |
| Malaguti | F10 Wap 50c.c. AC (a partir del 2004) |
| Malaguti | Yesterday 50c.c. AC |
| Malaguti | F10 Jet Line 50c.c. AC (antes del '99) |
| Malaguti | Centro 50c.c. AC |
| Malaguti | F10 CAT 50c.c. (a partir del '99) |
| Malaguti | F12 Phantom 50c.c. AC (aire) |
| MBK | Mach G 50c.c. AC |
| MBK | Flipper 50c.c. AC |
| MBK | Evolis 50c.c. AC |
| MBK | Equalis 50c.c. AC |
| MBK | Sorriso 50c.c. AC (a partir del '96) |
| MBK | Ovetto 50c.c. AC |
| PGO | Galaxy 50c.c. AC |
| PGO | Star 50c.c. AC |
| PGO | Comet 50c.c. AC |
| PGO | T-REX 50c.c. AC |
| PGO | Big Max 50c.c. AC |
| Yamaha | Zest YE 50c.c. AC |
| Yamaha | Breeze 50c.c. (AC) |
| Yamaha | Jog 50c.c. AC |
| Yamaha | Neo's 50c.c. AC |
| Yamaha | Why 50c.c. AC |
| Yamaha | Jog R 50c.c. AC |
| Yamaha | Axis 50 AC (aire) |
