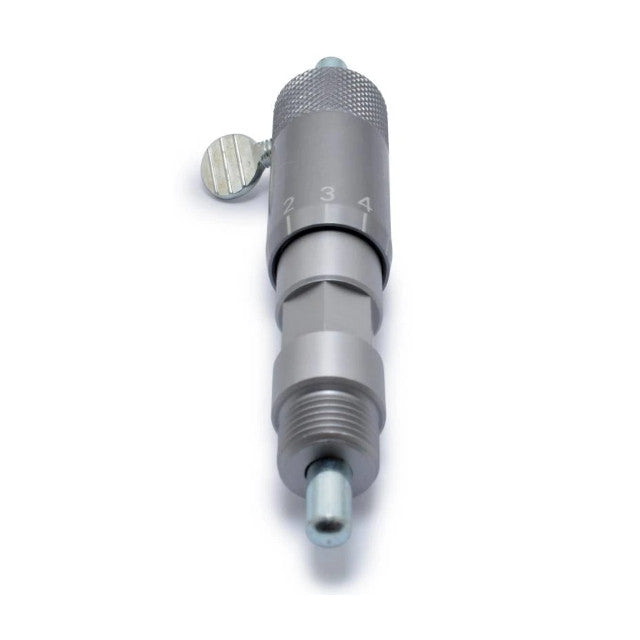

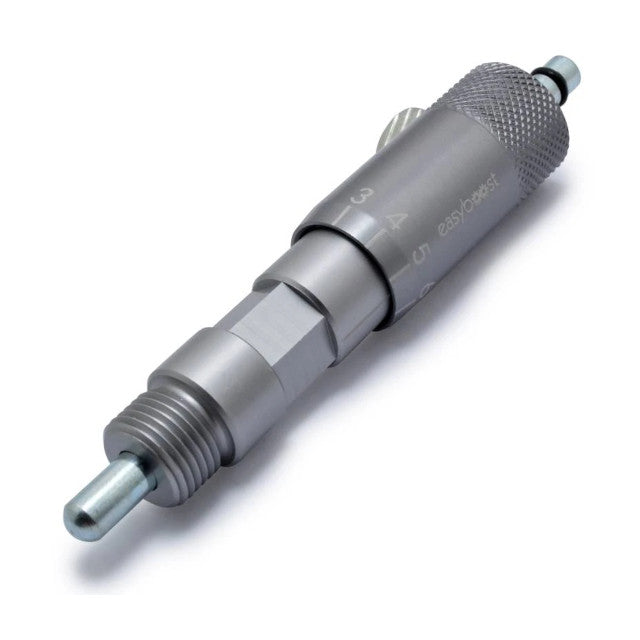

Micrometer ignition timing adjustment Easyboost

Micrometer ignition timing adjustment from the manufacturer Easyboost.

The Easyboost timing micrometer for 2-stroke engines allows you to easily install and adjust the ignition of an internal or external rotor. Whether it is a scooter, a 50cc AM6 or Derbi motorcycle.

The micrometer is graduated from 0 to 9. When the pin head is turned one full rotation, this represents a displacement of the rod by 1 mm. One scale division represents 0.1 mm. For example, if you want to set the ignition to 2.3 mm before top dead center (TDC), you will need to turn the head 2 turns + 3 graduations.

To better understand how to use the Easyboost micrometer, here are 2 video tutorials:
